STOL Features Guide

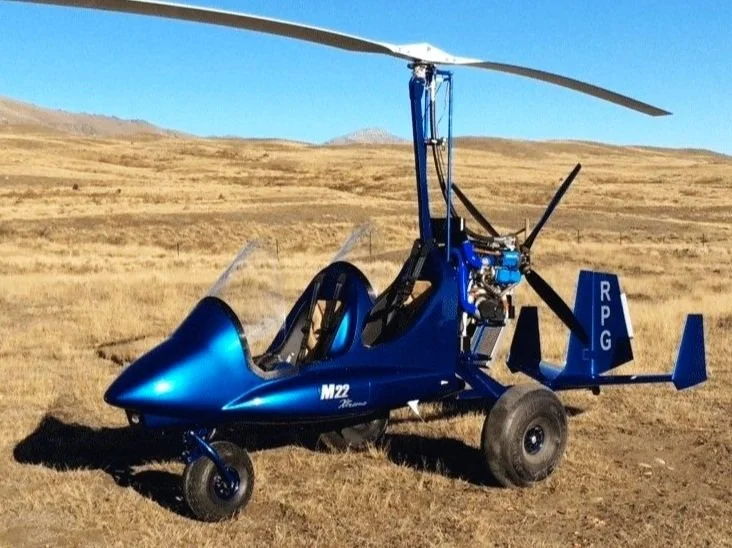

M22 Xtreme
The open air feel of the M16 but without rear controls to get in the way of your passenger; add baggage space and you have the perfect traveling gyroplane.

M24 Xtreme
Side by side excitement ready for summer or winter - heat for cold days, doors off for hot days! Incredible visibility, rugged capabilities, modern design.

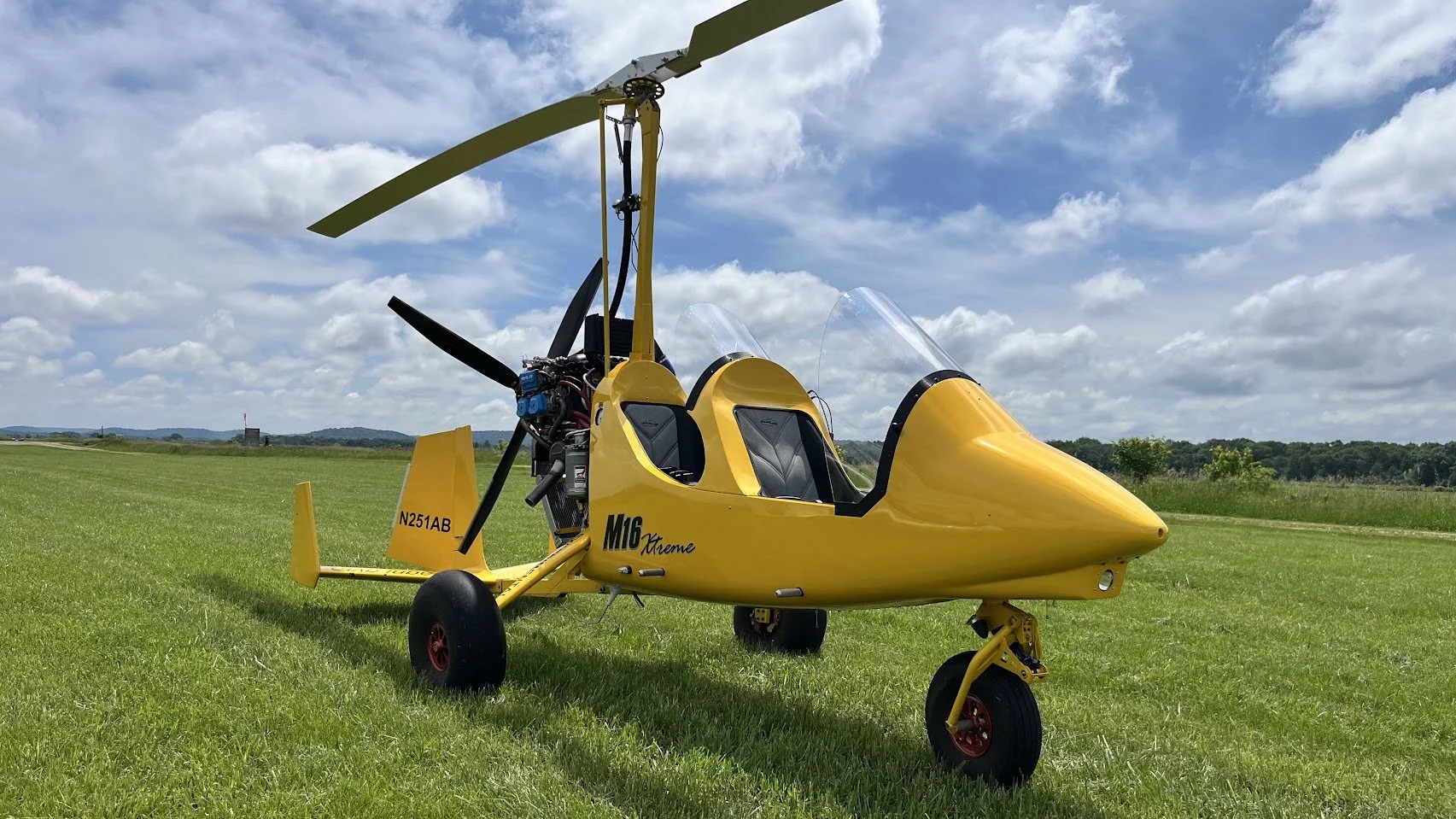

M16 Xtreme
Open air adventure with extremely short takeoff and landing rolls. Highly maneuverable, 360 degree visibility and dual controls for two pilots to enjoy the experience.

Xtreme STOL Series

AVAILABLE NOW

Unmatched adventure and scenic exploration—turning every flight into pure excitement. This is a go anywhere, land anywhere aircraft.

Powered Parachutes Australia
Bunbury Airport
South Western Hwy
Bunbury WA 6231
info@westsideaviation.com.au
0408 923 710

Performance
Max Speed: 115 mph
Cruise: 65 - 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 50 - 225 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.5 gph
Range: 325 miles

Performance
Performance
Max Speed: 115 mph
Cruise: 65 - 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 125 - 300 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.5 - 7.0 gph
Range: 325 miles

Performance
Max Speed: 115 mph
Cruise: 65 - 95 mph
Rate of Climb: 1500 ft/min
Takeoff Roll: 50 - 225 ft
Landing Roll: 0 - 50 ft
Max Crosswind: 25 knots
Fuel Burn: 4.0 - 6.5 gph
Range: 350 miles

Specifications
Configuration: Tandem
Doors: What doors?
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 15 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS
Empty Weight: 675 lbs
Gross Weight: 1320 lbs
Useful Load: 645 lbs
Fuel Capacity: 19 gallons
Baggage: 20 - 40 lbs
Fuselage: Carbon Fiber

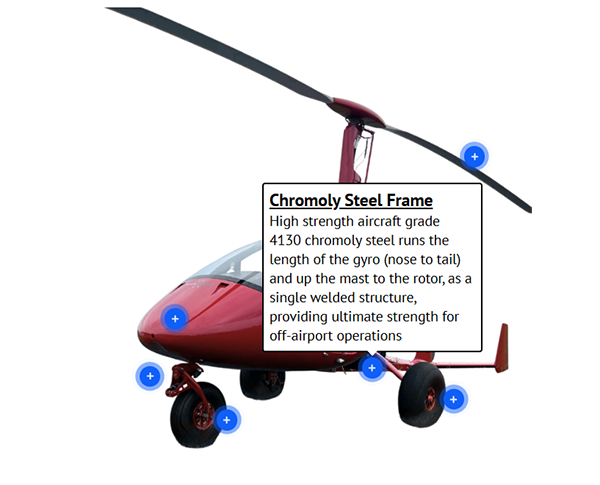

Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 Blade
Controls: Dual
Wheels: Beringer

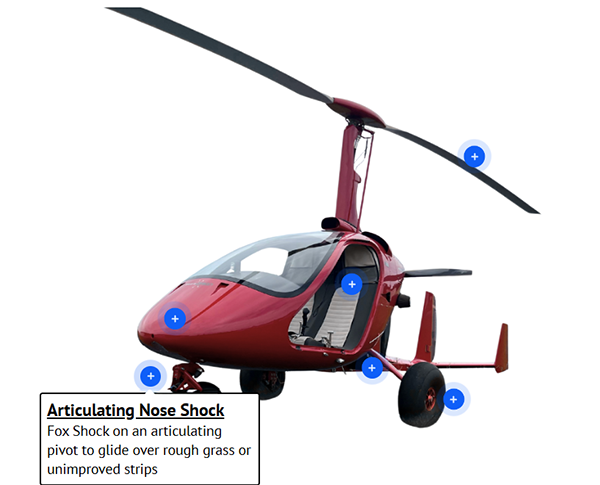

Nose Gear: Fox Shocks Articulated

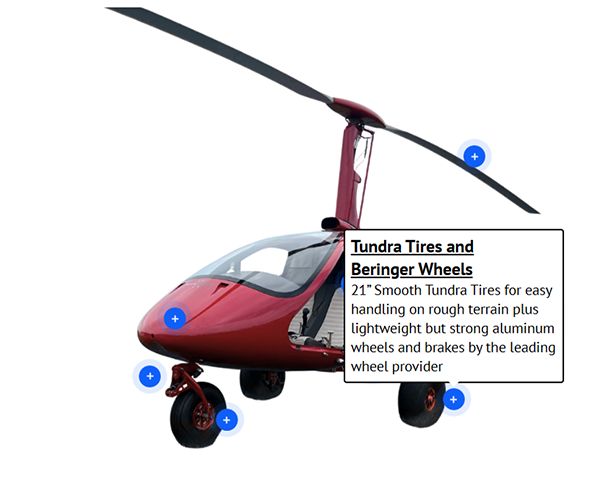

Main Tires: Aero Classic Tundra 850

Specifications
Configuration: Side by Side

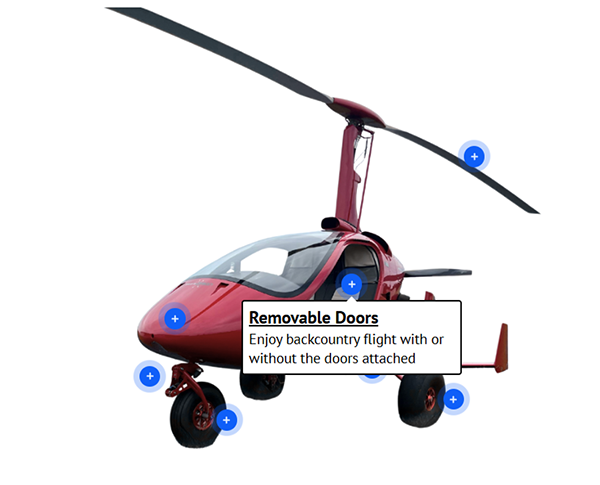

Doors: Removable
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 14 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS or 916iS
Empty Weight: 725 lbs
Gross Weight: 1320 lbs
Useful Load: 595 lbs
Fuel Capacity: 21 gallons
Baggage: 50 - 100 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel

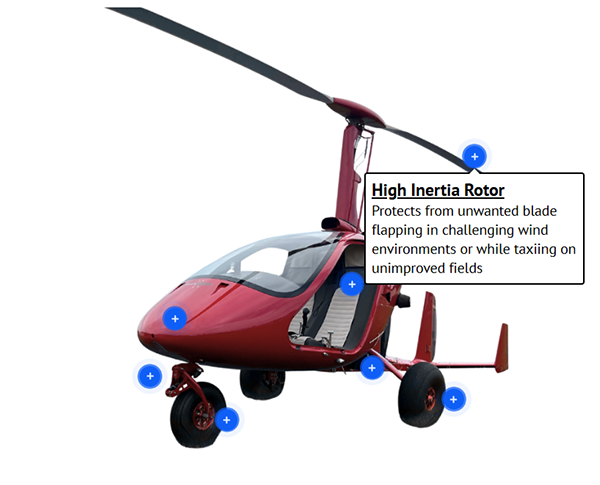

Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 or 5 Blade; Constant Speed Options
Controls: Dual
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850

Specifications
Configuration: Tandem
Doors: Overkill…
Rotor Diameter: 28 ft
Height: 9 ft 3 in
Length: 15 ft 6 in
Width: 5 ft 10 in
Engine: Rotax 915iS
Empty Weight: 680 lbs
Gross Weight: 1320 lbs
Useful Load: 640 lbs
Fuel Capacity: 21 gallons
Baggage: 40 - 60 lbs
Fuselage: Carbon Fiber
Frame: 4130 Chromoly Steel
Rotor: High Inertia Composite
Propeller: DUC Flash 2 4 Blade
Controls: Front Only
Wheels: Beringer
Nose Gear: Fox Shocks Articulated
Main Tires: Aero Classic Tundra 850
